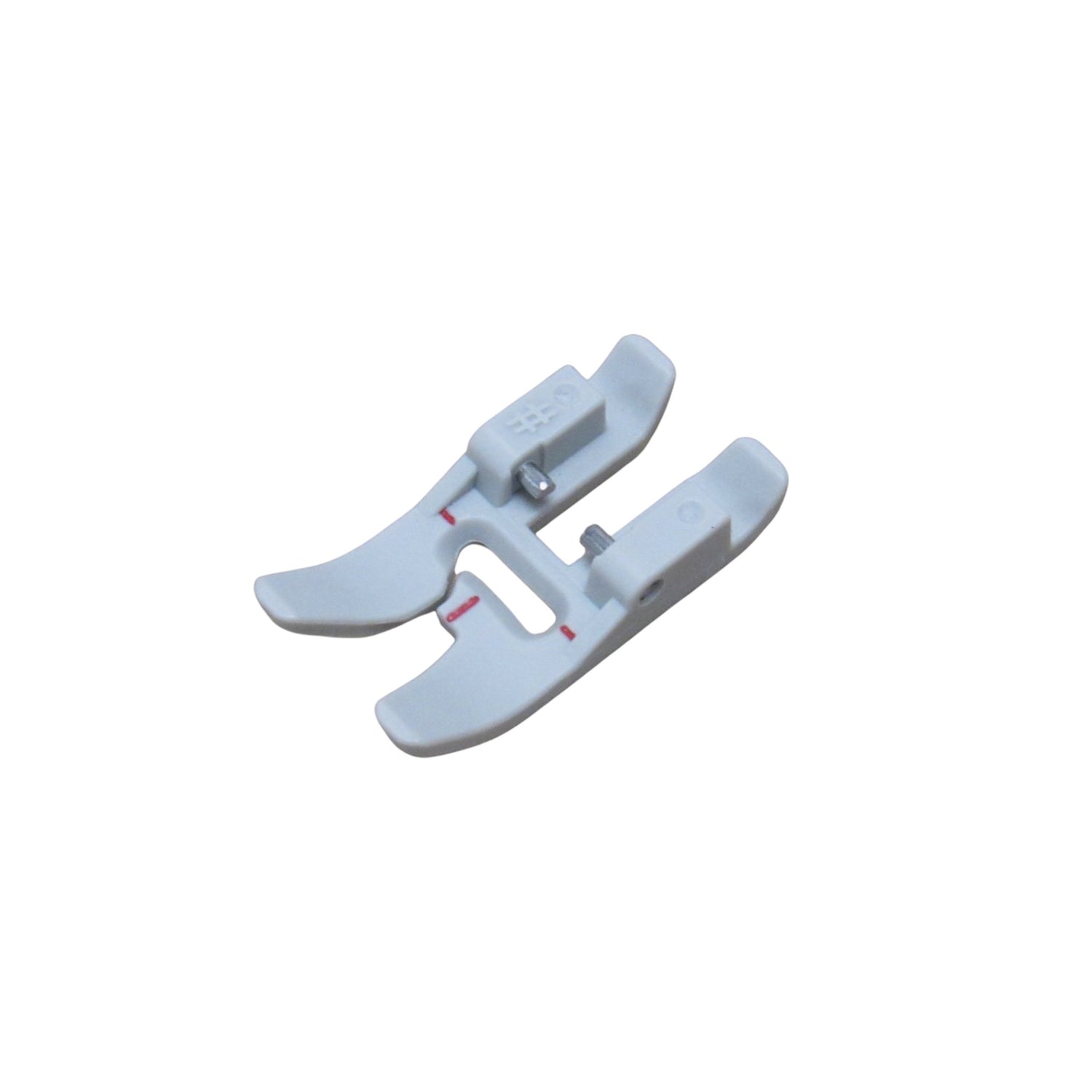

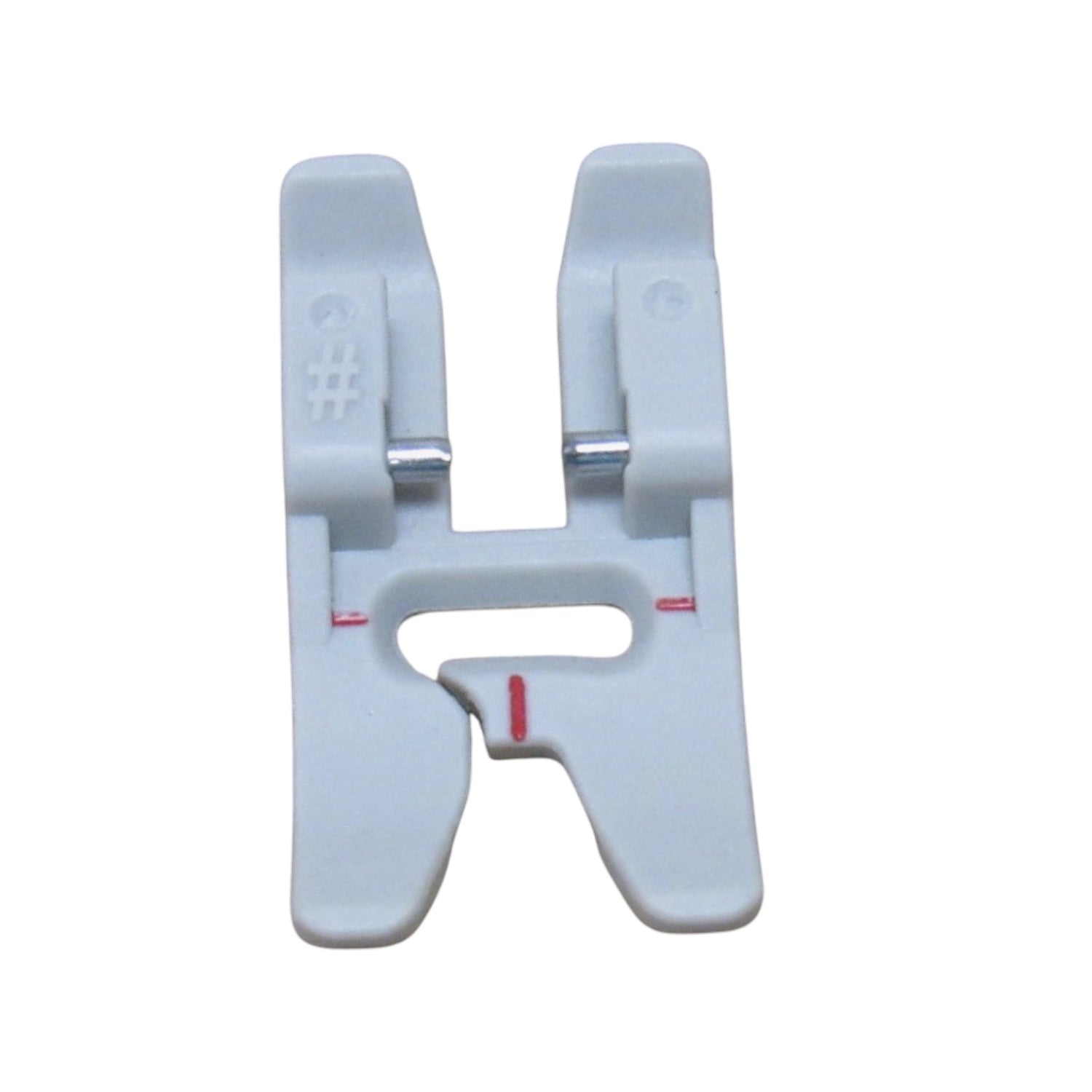

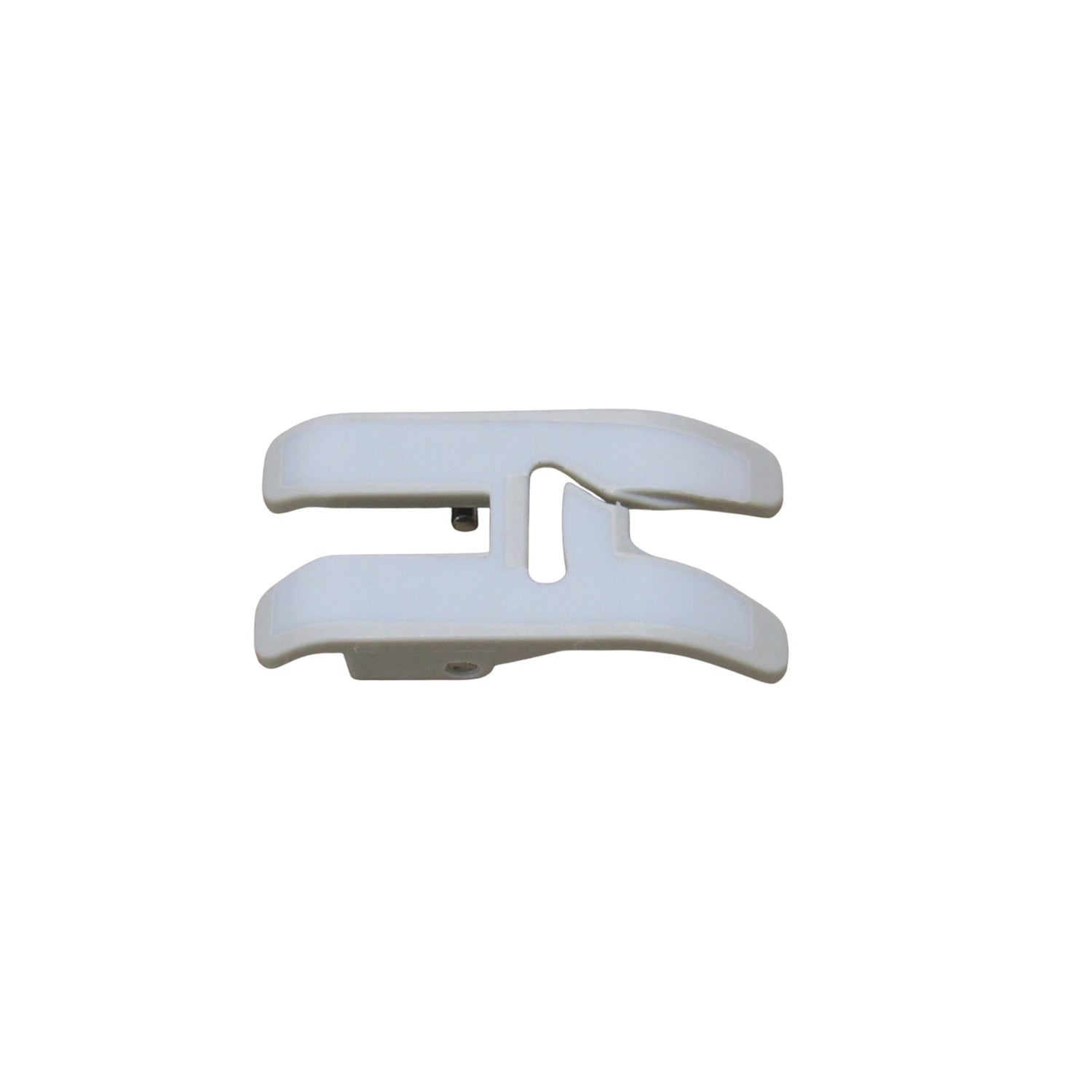

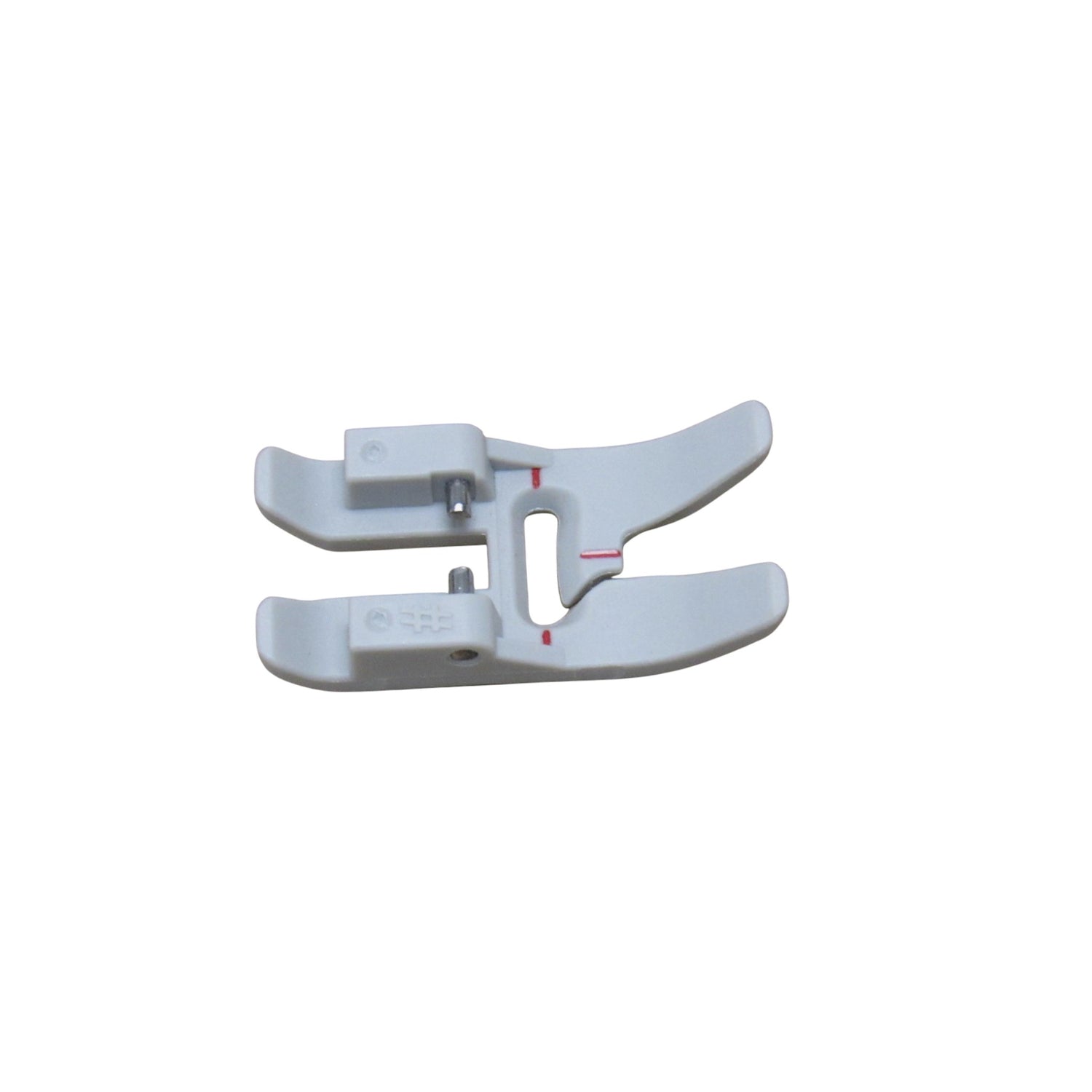

Pfaff Non-Stick Zigzag Foot IDT Snap-On - Part 820664096

Replacement Non-Stick Zigzag Foot with IDT for Pfaff Sewing Machines

Achieve smooth, skip-free zigzag stitching on vinyl, leather, faux leather, and other sticky or coated fabrics with this non-stick zigzag presser foot designed for Pfaff sewing machines with IDT (Integrated Dual Feed Technology). Part number 820664096 is a replacement snap-on presser foot with a Teflon-coated sole that glides effortlessly over materials that would otherwise stick or drag under a standard metal foot.

What This Foot Does

The Non-Stick Zigzag Foot is designed for sewing on fabrics that tend to stick to standard presser feet — including vinyl, faux leather, laminated cotton, oilcloth, and plastic-coated materials. The Teflon-coated sole reduces friction so the fabric feeds evenly without sticking, stretching, or skipping stitches. With a 7mm zigzag capacity, it handles a wide range of decorative and functional stitch widths.

Teflon-Coated Sole: The non-stick coating prevents fabric from adhering to the foot, ensuring smooth, consistent feeding even on the most challenging materials.

7mm Zigzag Capacity: Accommodates the full 7mm stitch width available on compatible Pfaff machines, giving you maximum versatility for zigzag, satin stitch, and decorative stitches.

IDT Precision: Designed to work with the Pfaff Integrated Dual Feed (IDT) System, which feeds fabric evenly from both the top and bottom — critical when working with slippery or sticky materials that are prone to shifting.

How to Use the Non-Stick Zigzag Foot

1. Attach the Foot: Snap the Non-Stick Zigzag foot onto the presser bar holder of your Pfaff machine. Ensure it is correctly engaged with the Pfaff IDT mechanism.
2. Engage IDT: Activate the IDT system on your machine for even, controlled feeding of all fabric layers.
3. Select Your Stitch: Choose your desired zigzag or decorative stitch. The foot accommodates up to 7mm stitch width.
4. Position the Fabric: Place your project under the foot. No pins or clips in the sewing path — use wonder clips or tape for sticky fabrics.
5. Sew Steadily: Begin sewing at an even, moderate speed. The non-stick sole will glide smoothly over the fabric surface without dragging or sticking.
6. Avoid Backstitching Over Vinyl: On vinyl or faux leather, use a knot or tie-off method instead of backstitching to avoid perforating the material.

Key Features & Benefits

• Teflon-Coated Non-Stick Sole: Glides over vinyl, leather, laminated, and coated fabrics without sticking
• 7mm Zigzag Capacity: Full-width stitch coverage for zigzag, satin, and decorative stitches
• IDT-Compatible Design: Features the special slot for Pfaff's Integrated Dual Feed Technology
• Even Fabric Feeding: IDT system prevents shifting and skipped stitches on difficult materials
• Snap-On Convenience: Quick and easy attachment for efficient presser foot changes
• Versatile Applications: Ideal for vinyl, faux leather, oilcloth, laminated cotton, and plastic-coated fabrics

Perfect For

• Vinyl and faux leather bags, wallets, and accessories
• Oilcloth and laminated cotton projects
• Plastic-coated or waxed fabrics
• Appliqué with satin stitch on coated materials
• Decorative zigzag stitching on sticky fabrics
• Any project where standard feet drag or stick

Compatible Pfaff Sewing Machine Models (with IDT)

Ambition Series: Ambition 1.0, Ambition 1.5, Ambition 2.0

Creative Series: Creative Sensation, Creative Vision

Expression Series: Expression 2.0, Expression 3.0, Expression 3.2, Expression 4.0, Expression 4.2

Passport Series: Passport 2.0

Performance Series: Performance 5.0

Select Series: Select 2.0, Select 2.2, Select 3.0, Select 3.2, Select 4.0

Classic Models: 935, 955, 1016, 1020, 1022, 1030, 1032, 1040, 1042

1100 Series: 1151, 1171

1400 Series: 1371, 1467, 1471, 1472, 1473, 1475

1500 Series: 1520, 1522, 1525, 1526, 1527, 1528, 1529, 1530, 1536, 1538, 1540, 1546, 1548

2000 Series: 2010, 2014, 2020, 2023, 2024, 2025, 2026, 2027, 2028, 2029, 2030, 2034, 2036, 2038, 2040, 2042, 2044, 2046, 2048, 2054, 2056, 2058, 2124, 2134, 2140, 2144, 2170

4200 Series: 4240, 4250, 4260, 4270

6000 Series: 6091, 6110, 6112, 6120, 6122, 6150, 6152, 6230, 6232, 6250, 6270

7000 Series: 7510, 5730, 7550, 7560, 7562, 7570

Product Specifications

• Part Number: 820664096
• Type: Snap-on presser foot with IDT compatibility
• Stitch Width: 7mm zigzag capacity
• Sole Material: Teflon-coated non-stick
• Application: Zigzag, satin stitch, decorative stitches on vinyl, leather, and coated fabrics
• IDT System: Compatible — features special slot for dual feed mechanism

Why Non-Stick Matters for Zigzag Stitching

Standard metal presser feet create friction against vinyl, faux leather, and laminated fabrics, causing them to stick, drag, and feed unevenly. This leads to skipped stitches, puckering, and uneven stitch length. The Teflon-coated sole on this foot eliminates that friction entirely, letting the IDT system do its job of feeding fabric smoothly and evenly from both top and bottom. The result is clean, consistent zigzag stitching on materials that would otherwise be frustrating to sew.

Achieve professional results on vinyl, faux leather, and coated fabrics with this reliable replacement Non-Stick Zigzag foot designed specifically for Pfaff machines with IDT technology.
