How to Hook Up Your Electronic Foot Controller 2-Wire (#6092FC) for Your Sewing Machine
Whether you’re reviving a vintage Singer or setting up a compatible sewing machine, the Electronic Foot Controller 2-Wire (#6092FC) is a reliable choice for smooth, steady speed control. This plug-and-play controller, designed for models like the Singer 301A, 401A, 403A, and 404, is easy to install in just a few minutes. In this blog post, we’ll walk you through a simple step-by-step guide to hooking up your #6092FC foot controller, even if you’re not a tech wizard. Let’s get your machine stitching like a dream!
What You’ll Need
- Electronic Foot Controller 2-Wire (#6092FC) (available from Vintage Singer Parts)
- A compatible sewing machine with a two-wire system
- Small flathead screwdriver
- A flat, stable surface for the foot controller
Safety First
Before you start, a few quick safety tips:
- Unplug your sewing machine from the power outlet to avoid any risk of shock.
- Inspect the foot controller and cord for damage like frayed wires or cracks. If it’s damaged, don’t use it.
- Confirm your machine uses a two-wire system and matches the controller’s 110/120V, 1-amp rating. Check your manual if unsure.
Step-by-Step Guide to Hooking Up Your Foot Controller
1. Confirm Your Machine’s Compatibility
The #6092FC works with many two-wire sewing machines, including Singer models like the 301A, 401A, 403A, and 404. Check your machine’s manual or terminal block to ensure it uses a two-wire setup. If your machine has a three-wires or different system, this controller may not be compatible.
2. Find the Terminal Block
Locate the terminal block on your sewing machine, usually on the side or back near the power input. If you’re replacing an old foot controller, gently unplug and remove it.
3. Open the Foot Controller

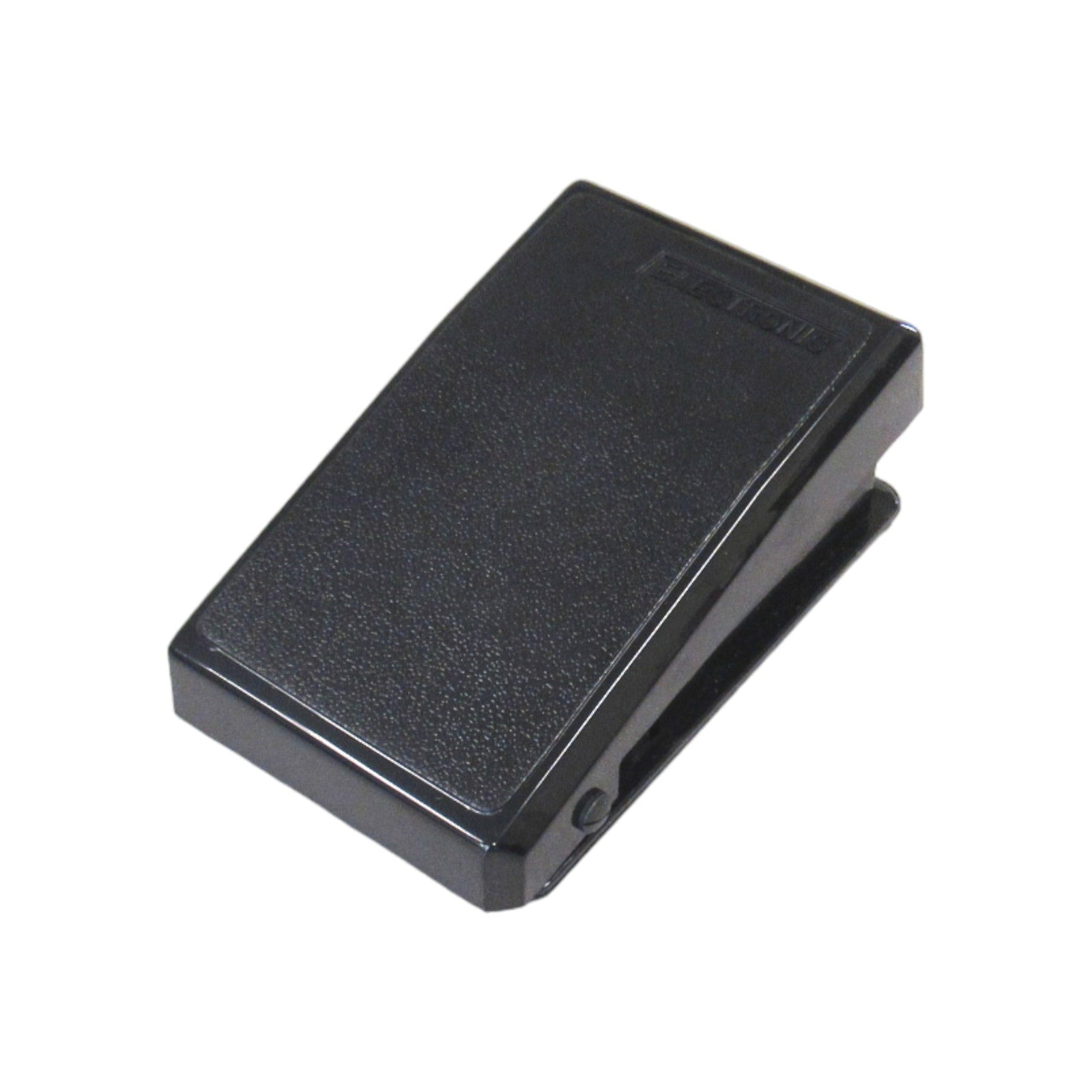

The #6092FC has a durable 6" x 4" housing with a cover secured by two screws:
- Use a small flathead screwdriver to remove both screws holding the cover.
- Lift the cover to access the internal terminals and wire locking devise.
4. Connect the Wires
Good news: with a two-wire system, it doesn’t matter which wire goes to which terminal!
- Attach the two wires from the controller to the terminal block on your sewing machine.
- Tighten the connections securely using the screwdriver if needed.
- Close the controller cover and screw it back in place.
5. Plug It In
- If your #6092FC has an integrated power cord, plug it directly into a 110/120V outlet.
- If it uses a separate power cord, connect it to the controller and then to the outlet.
- Ensure the cord is untangled and secured using the controller’s wire lock device to prevent it from slipping during use.
6. Set Up the Controller
Place the foot controller on a flat, stable surface where you can comfortably press it with your foot. Keep the cord clear of the machine’s moving parts to avoid snags.
7. Test Your Setup
- Plug in your sewing machine and turn it on.
- Gently press the foot controller to test the speed. The #6092FC offers super-steady speed control, so your machine should respond smoothly to light or firm pressure.
- Sew a few stitches on scrap fabric to ensure everything works perfectly. If the speed feels consistent and the controller stays cool, you’re good to go!
Troubleshooting Tips
If something’s not quite right, don’t worry—here are quick fixes for common issues:
- Machine Not Responding? Double-check that all connections are secure and the machine is plugged in. Ensure your machine is compatible with a two-wire controller.
- Stuck at One Speed? Verify the wires are tightly connected. If the issue persists, your machine may need a technician’s touch.
- Controller Overheating? The #6092FC is heat-resistant, so this shouldn’t happen. If it feels warm, unplug it immediately and contact the supplier for assistance.
- Loose Cord? Use the wire lock device to secure the cord. If it’s still loose, check the terminal connections.
Why Choose the #6092FC Foot Controller?
This foot controller is a game-changer for sewists, especially those working with vintage machines. Its heat-resistant design, wire lock device, and reliable speed control make it a durable and user-friendly upgrade. Plus, it’s designed for quick mounting, so you’ll be sewing in no time. Whether you’re quilting, mending, or crafting, the #6092FC ensures precision and ease.
Final Notes
- Not Sure About Compatibility? Check your sewing machine’s manual or contact Vintage Singer Parts for help.
- Shipping Perks: Orders over $45 ship free from Central Michigan Sewing Supplies, with delivery in 3-7 days in the contiguous U.S. via USPS with tracking.
Ready to Sew?
With your #6092FC foot controller hooked up, you’re ready to tackle your next sewing project with confidence! Whether you’re restoring a vintage Singer or powering through a modern masterpiece, this controller’s steady performance will keep you in the zone. Got questions or need help with your specific machine? Drop a comment below or reach out to the supplier for expert advice.
Happy sewing, and let’s bring those creative visions to life!
